上海新动力汽车科技股份有限公司（曾用名：上海柴油机股份有限公司、上海柴油机厂，上海吴淞机器厂等），始建于1947年，现隶属于上汽集团，1993年改制为在上交所发行A、B股的国有控股公司。
公司在近70年的发展历程中，产品遍布世界各地，目前拥有R、H、D、C、E、G、W等七大系列柴油机、功率覆盖50-1600kW，主要应用于工程机械、卡车、客车、发电设备、船舶、农业机械等领域。公司坚持以客户为核心，以“五纵七横”的公路网为依托，打造了由19个办事处、7个配售处和300多家核心服务站、1000多家服务商组建的销售、服务支持体系。
Shanghai New Energy Vehicle Technology Co., Ltd. (formerly known as Shanghai Diesel Engine Co., Ltd., Shanghai Diesel Engine Factory, Shanghai Wusong Machinery Factory, etc.), established in 1947, is now a subsidiary of SAIC Motor. In 1993, it was restructured into a state-controlled company that issued A and B shares on the Shanghai Stock Exchange.Over the past 70 years of its development, the company's products have been distributed worldwide, currently featuring seven major series of diesel engines (R, H, D, C, E, G, W) with power ranges from 50 to 1,600 kW, primarily applied in construction machinery, trucks, buses, power generation equipment, ships, agricultural machinery, and other fields. Adhering to a customer-centric approach and leveraging the "Five Vertical and Seven Horizontal" highway network, the company has established a sales and service support system comprising 19 offices, 7 distribution centers, over 300 core service stations, and more than 1,000 service providers.

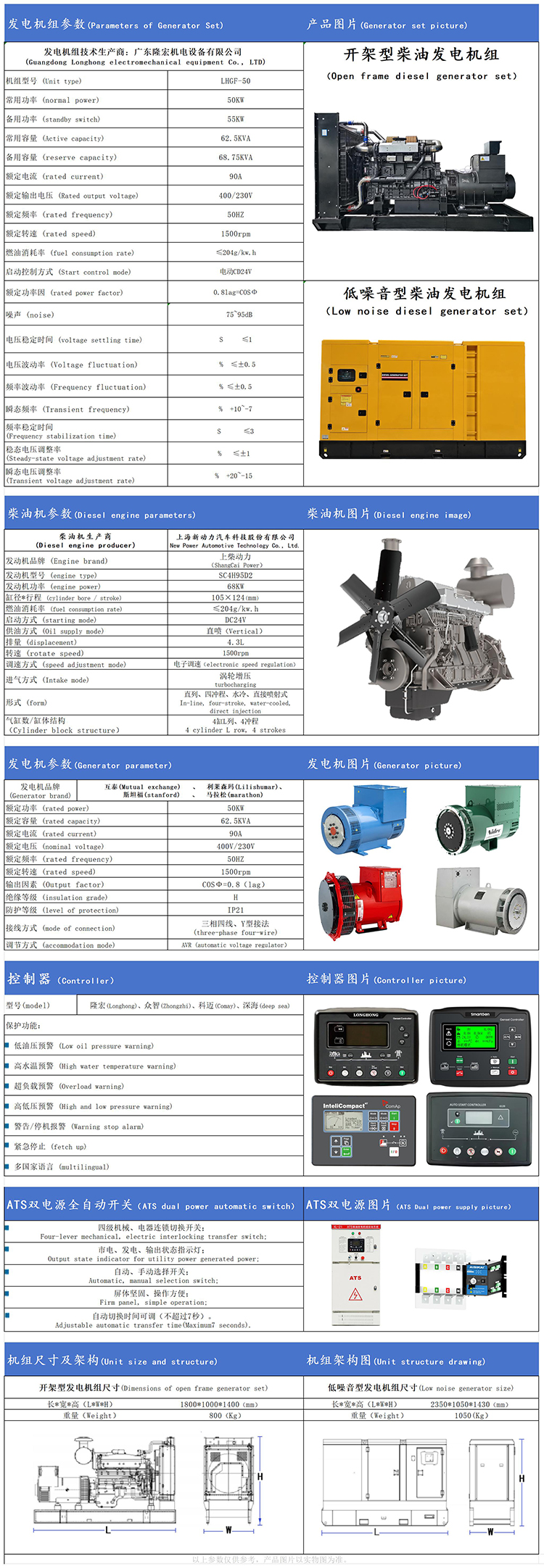

| 一、柴油发电机组参数Parameters of diesel generator sets | |||||||
| 机组型号 Unit model | 电压 (V) Voltage | 频率 (Hz) Frequency | 相数 Phase | 功率因数 PF | 电流 A Current | 常用功率kw/kva Common power | 备用功率kw/kva Standby power |
| LHGF-50 | 400V/230V | 50 | 3 | 0.8 | 90A | 50KW/62.5KVA | 55KW/69KVA |
| LHGF-50 | 220V/127V | 60 | 3 | 0.8 | 164A | 50KW/62.5KVA | 55KW/69KVA |
| 1. 发动机功率与海拔高度关系：海拔高度1500米以上，每升高300米，功率下降4%。海拔不可高3000米 Relationship between engine power and altitude: Above 1500 meters, power decreases by 4% The altitude cannot be higher than 3000 meters for every 300 meters increase. 2. 发动机功率与环境温度关系：环境温度高40摄氏度时，每超过10摄氏度，发动机功率降低3%。 Relationship between engine power and ambient temperature: When ambient temperature is above 40 ° C, engine power decreases by 3% for every 10 ° C. | |||||||
| 二、柴油机（引擎）技术参数Technical parameters of diesel engines | |
| 发动机品牌: Enginebrand: | 上柴/上海柴油机股份有限公司 Shangchai / Shanghai Diesel Engine Co., Ltd |
| 发动机型号: Enginemodel: | SC4H95D2 |
| 发动机功率: Thepoweroftheengine | 68KW |
| 气缸型式: Cylindertype | 4缸L列、4冲程 4 cylinder, 4 stroke L |
| 缸径*行程: Bore*stroke: | 105*124 (mm) |
| 吸气方式: Aspiration | 涡轮增压 Turbocharging |
| 额定转速: Ratedspeed | 1500rpm |
| 燃油消耗率： Fuelconsumptionrate: | ≤215g/kW·h |
| 排量: Displacement: | 4.3L |
| 冷却方式: Coolingmode | 强制水冷 Forced water cooling |
| 调试稳定性: Debuggingstability | ≤5％ |
| 启动方式: Startup mode: | DC24V |
| 三、发电机参数（Electric machine parameters）： | |
| 发电机品牌： Generator brand： | 互泰发电机 HUTAI generator |
| 发电机型号： Generator model： | HTW-50 |
| 额定功率： Rated power | 50KW |
| 额定电压： Rated voltage： | 400V/230V 220V/380V |
| 额定电流： Rated current: | 90A |
| 额定频率： Rated frequency： | 50Hz |
| 额定转速： Rated speed： | 1500rpm |
| 励磁方式： Excitation mode： | 无刷自励 Brushless self excitation |
| 电压调整范围： Voltage regulation range | ≥5％ |
| 电压波动范围： Voltage fluctuation range: | ≤±5％ |
| 绝缘等级： Insulation grade: | H |
| 防护等级： Protection level: | IP21 |
| 四、机组另选配置The unit configuration is optional： | ||
| 电瓶浮充电器 Battery float charger | ATS自动负载转换屏 ATS automatic load conversion screen | |
| 防雨型机组 Rainproof unit | 静音型机组（箱柜） Silent type unit (cabinet) | |
| 分体式日用燃油箱、一体式底座燃油箱 Split-type daily-use fuel tanks and integrated base fuel tanks | 带远程监控“三遥”功能机组控制屏 Control panel of the unit with remote monitoring "three-remote" function | |
| 移动拖车型电站 Mobile trailer type power station | 机油、柴油、水套、防冷凝加热器 Engine oil, diesel, water jacket, anti-condensation heater | |
| ATS全自动开关ATS automatic switch | |
| 保护功能：保证主电源故障时自动切换到备用电源，保证供电的连续性。Protective function：ensure automatic switching to backup power supply in case of main powerfailure, thereby ensuring the continuity of power supply. |
|
| 多台机组并机柜 Multiple units are paralleled in a cabinet | |
| 并联柜是一种专用配电柜，用于多台发电机组（不间断电源）并联运行。实现多台发电机组的同步输出、电流共享控制和系统管理，为关键负载提供更大功率、更高可靠性的冗余不间断电源保护 A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads. |  |
| 远程控制Remote control | |
| 远程控制可实现对发电机组的实时监控、远程启停、参数调整、故障预警等功能，确保设备稳定运行，显著提高运维效率，特别适用于无人电站或应急供电场景Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios |  |

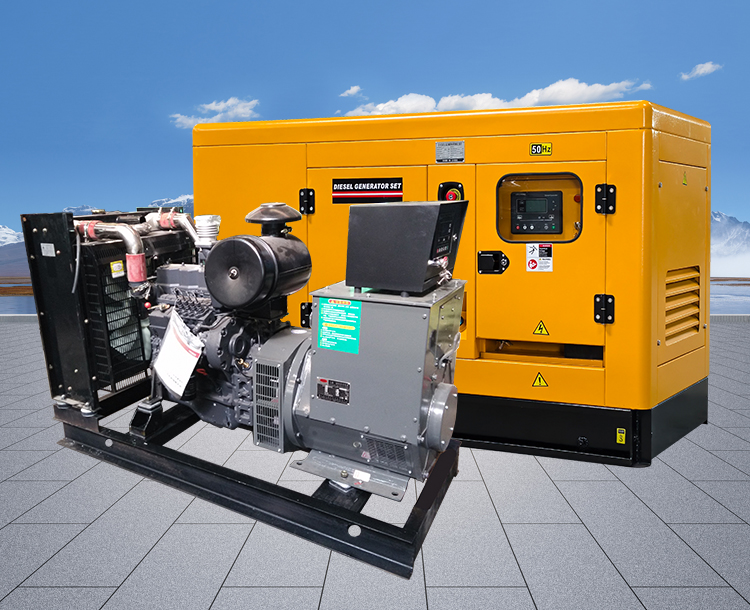

| 机组尺寸及结构Unit size and structure | |
| 开式发电机组的尺寸 Dimensions of open type genset | 静音式发电机组的尺寸 The dimensions of the silent generator set |
| L*W*H 1910*890*1170（mm） | L*W*H 2600*1130*1550（mm） |
| Weight 950（Kg） | Weight 1350（Kg） |
产品订购：上柴股份50KW柴油发电机组 适合中小企业备用电源
