发电机组参数 (Parameters of Generator Set) | 产品图片 (Generator set picture) | |||

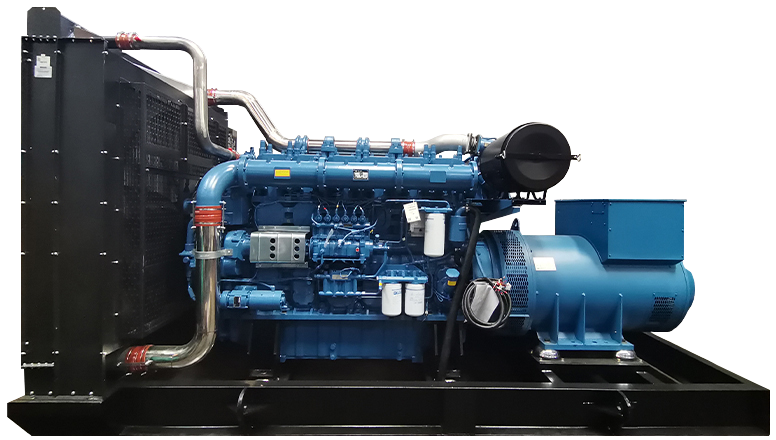

发电机组技术生产商：广东隆宏机电设备有限公司 Guangdong Longhong electromechanical equipment Co., LTD | 开架型柴油发电机组 (Open frame diesel generator set） | |||
| 机组型号 (Unit type) | LHGF-1000 |
| ||
| 常用功率 (normal power) | 1000KW | |||
| 备用功率 (standby switch) | 1100KW | |||
| 常用容量 (Active capacity) | 1250KVA | |||
| 备用容量 (reserve capacity) | 1375KVA | |||
| 额定电流 (rated current) | 1800A | |||
| 额定输出电压 (Rated output voltage) | 400/230V | |||
| 额定频率 (rated frequency) | 50HZ | |||
| 额定转速 (rated speed) | 1500rpm | |||

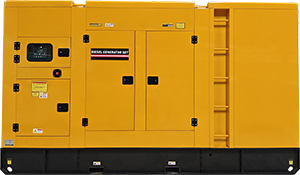

| 燃油消耗率 (fuel consumption rate) | ≤195g/kw.h | 低噪音型柴油发电机组 (Low noise diesel generator set） | ||
| 启动控制方式 (Start control mode) | 电动CD24V | |||
| 额定功率因 (rated power factor) | 0 .8lag=COSΦ |
| ||
| 噪声 (noise) | 75~95dB | |||
| 电压稳定时间 (voltage settling time) | S ≤1 | |||
| 电压波动率 (Voltage fluctuation) | % ≤±0.5 | |||
| 频率波动率 (Frequency fluctuation) | % ≤±0.5 | |||
| 瞬态频率 (Transient frequency) | % +10~-7 | |||
频率稳定时间 (Frequency stabilization time) | S ≤3 | |||
稳态电压调整率 Steady-state voltage adjustment rate | % ≤±1 | |||
瞬态电压调整率 (Transient voltage adjustment rate) | % +20~-15 | |||

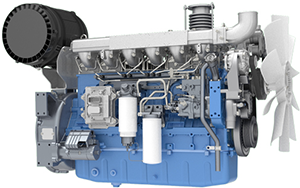

柴油机参数 (Diesel engine parameters) | 柴油机图片 (Diesel engine image) | |||
| 柴油机生产商:潍柴动力股份有限公司 (Weichai Power Co., Ltd.) |
| |||
| 发动机品牌 (Engine brand) | 潍柴动力(Weichai Power) | |||
| 发动机型号 (engine type) | 12M33D1210E200 | |||
| 发动机功率 (engine power) | 1210KW | |||
| 缸径*行程 (cylinder bore / stroke) | 150×185 | |||
| 燃油消耗率 (fuel consumption rate) | ≤195g/kw.h | |||
| 启动方式 (starting mode) | DC24V | |||
| 供油方式 (Oil supply mode) | 直喷(Vertical) | |||
| 排量 (displacement) | 39.2L | |||
| 转速 (rotate speed) | 1500rmp | |||
调速方式 speed adjustment mode： | 电子调速 (Electronic speed regulation) | |||
| 进气方式 Intake mode： | 涡轮增压(Turbocharged) | |||
形式 (form) | 直列、四冲程、水冷、 In-line, four-stroke, water-cooled, | |||
气缸数/缸体结构 (Cylinder block structure） | 12缸V列、4冲程 12 cylinder V row, 4 strokes | |||
发电机参数 (Generator parameter) | 发电机图片 (Generator picture) | |||
发电机品牌 (Generator brand) | 互泰(Mutual exchange) , 利莱森玛(Lilishumar)、 斯坦福(stanford) , 马拉松(marathon) |
|
| |
| 额定功率 (rated power) | 1000KW | |||
| 额定容量 (rated capacity) | 1250KVA | |||
| 额定电流 (rated current) | 1800A | |||
| 额定电压 (nominal voltage) | 400V/230V | |||
| 额定频率 (rated frequency) | 50HZ |
|
| |
| 额定转速 (rated speed) | 1500rpm | |||
| 输出因素 (Output factor) | COSΦ=0.8 (lag) | |||
| 绝缘等级 (insulation grade) | H | |||
| 防护等级 (level of protection) | IP21 | |||
接线方式 (mode of connection) | 三相四线、Y型接法 (three-phase four-wire) | |||
| 调节方式 (accommodation mode) | AVR(automatic voltage regulator) | |||
控制器 (Controller） | 控制器图片 (Controller picture) | |||
| 型号(model) | 隆宏(Longhong)、众智(Zhongzhi) 科迈(Comay)、深海(deep sea) |
|
| |
| 保护功能： | ||||
| 低油压预警 (Low oil pressure warning) | ||||
| 高水温预警 (High water temperature warning) | ||||
| 超负载预警 (Overload warning) |
|
| ||
| 高低压预警 (High and low pressure warning) | ||||
| 警告/停机报警 (Warning stop alarm) | ||||
| 紧急停止 (fetch up) | ||||
| 多国家语言 (multilingual) | ||||

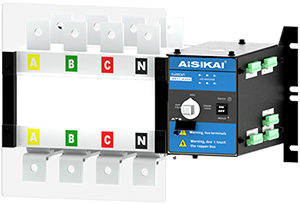

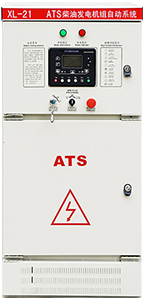

ATS双电源全自动开关 (ATS dual power automatic switch) | ATS双电源图片 (ATS Dual power supply picture) | |||
四级机械、电器连锁切换开关； Four-lever mechanical, electric interlocking transfer switch |
|
| ||
市电、发电、输出状态指示灯； Output state indicator for utility power generated power; | ||||
| 自动、手动选择开关； Automatic, manual selection switch; | ||||
| 屏体坚固、操作方便； Firm panel, simple operation; | ||||
| 自动切换时间可调（不超过7秒）。 Adjustable automatic transfer time(Maximum7 seconds). | ||||
机组尺寸及架构 (Unit size and structure) | 机组架构图 (Unit structure drawing) | |||
| 开架型发电机组尺寸(Dimensions of open frame generator set) | 低噪音型发电机组尺寸(Low noise generator size) | |||
| 长*宽*高（L*W*H） 4750*2190*2400 (mm) | 长*宽*高（L*W*H） 5600*2300*2500 (mm) | |||
| 重量（Weight） 7500 （Kg） | 重量（Weight） 10550 (Kg) | |||
|
| |||
